Sine Frequency Doubler (CB25812E)

Details
Written by: Newton C. Braga

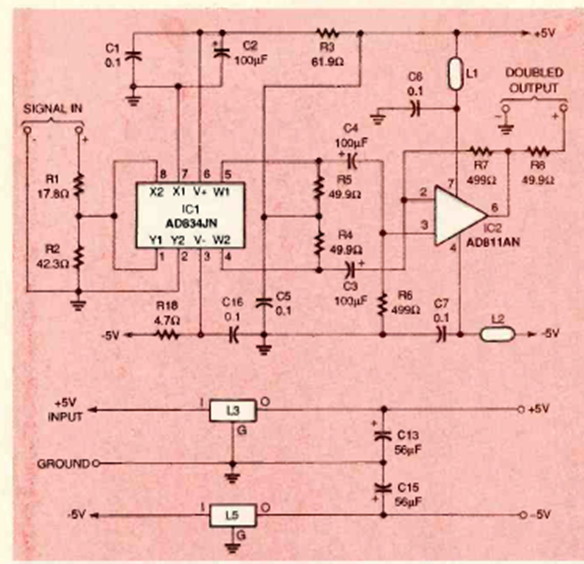

This circuit was found in the February 1995 issue of Electronics Now magazine. It can double the frequency of audio signals using common components.
