Graphic equalizer KA2223 (CB25943E)

Details
Written by: Newton C. Braga

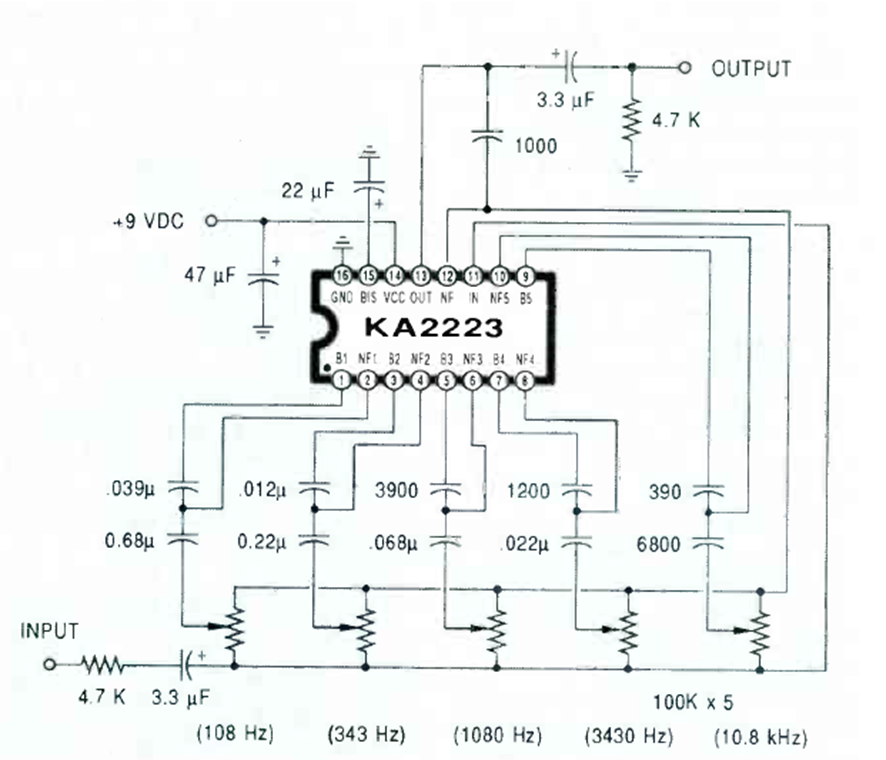

This circuit was found in a Radio Electronics from April 1990. The circuit has 5 equalization bands given by the capacitors used.




| Clique na imagem para ampliar |
