Siren 4046 (CB25764E)

Details
Written by: Newton C. Braga

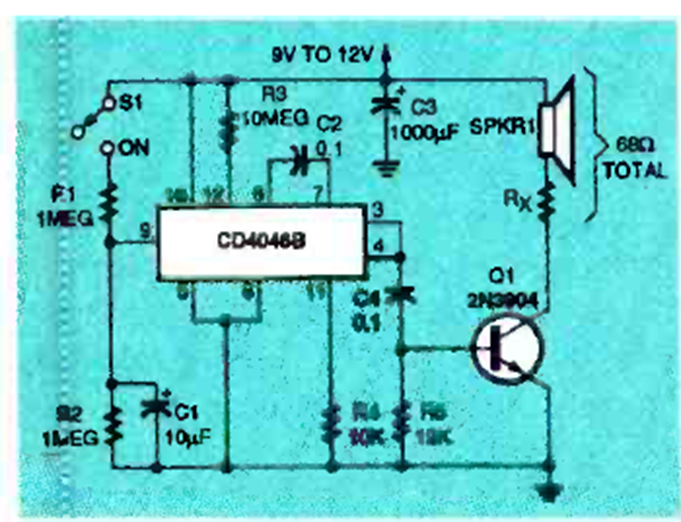

This circuit with the PLL4046 was found in the October 1994 Electronics Now magazine. The transistor is low power, and the volume obtained is small.
