Complementary Power Stage (CB25624E)

Details
Written by: Newton C. Braga

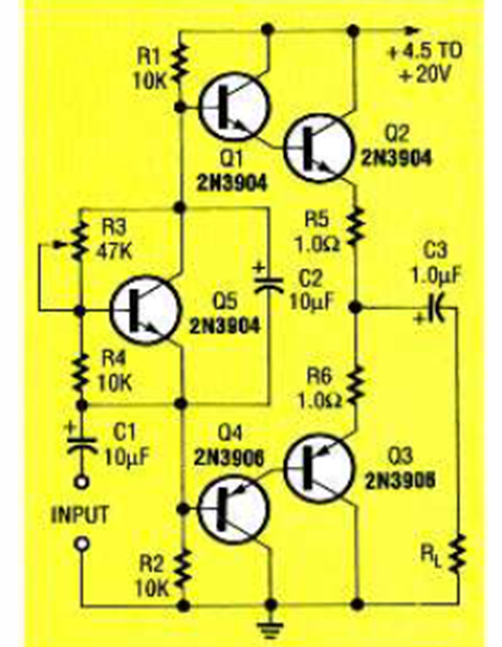

This circuit was found in the October 1993 Electronics Now magazine. The output transistors form complementary Darlington power supplies.
