Wien bridge oscillator with JFET regulator (CB25910E)

Details
Written by: Newton C. Braga

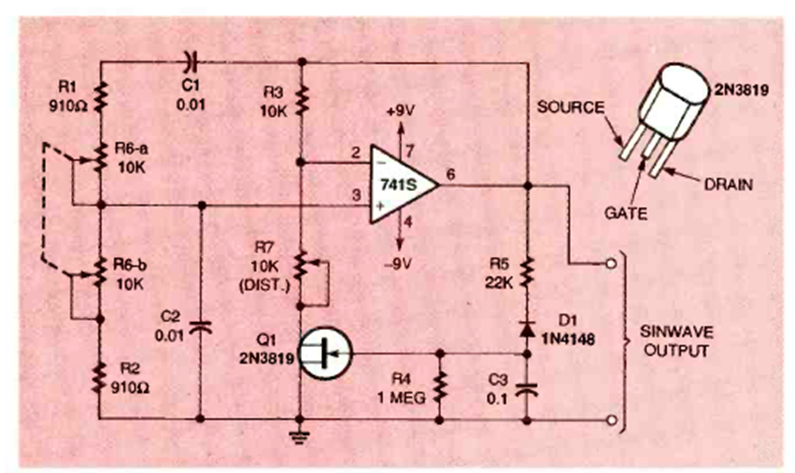

Operating in the range of 1.5 to 15 kHz, this sinusoidal oscillator is based on a 741 operational. The circuit is from an Electronics Now magazine from December 1995.




| Clique na imagem para ampliar |
