2-Transistor High Gain Amplifier (CB25638E)

Details
Written by: Newton C. Braga

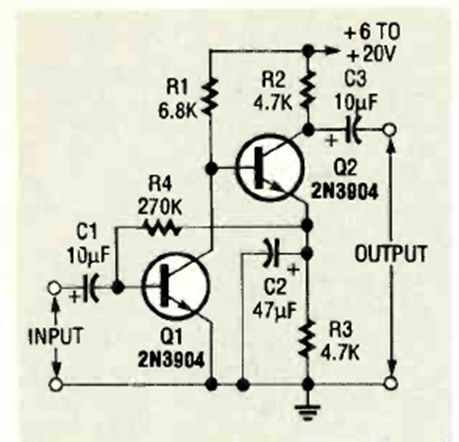

This general-purpose two-transistor circuit was found in the November 1993 issue of Electronics Now. The circuit for AC signals can be powered from 6 to 20 V.
