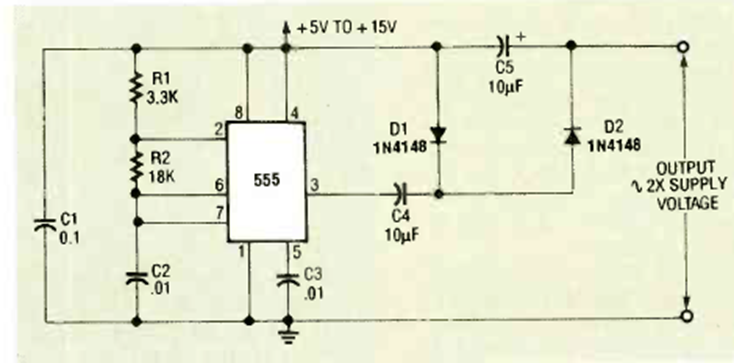

This circuit, which can generate voltages up to 25 V, was found in the December 1992 issue of Radio Electronics magazine. The circuit can have its frequency adjusted for greater efficiency and the current is a few milliamps.
| Clique na imagem para ampliar |
