Light Activated Alarm with SCR (CB25482E)

Details
Written by: Newton C. Braga

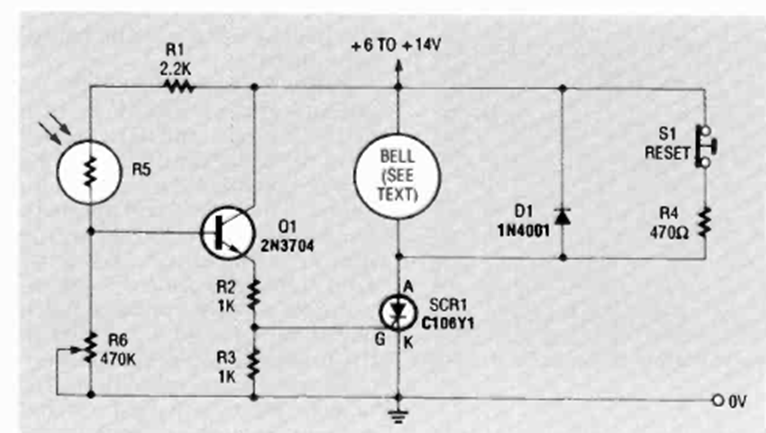

This high sensitivity circuit was found in the July 1992 Radio Electronics magazine. The circuit drives a buzzer, but a relay can be used to activate an external load.
