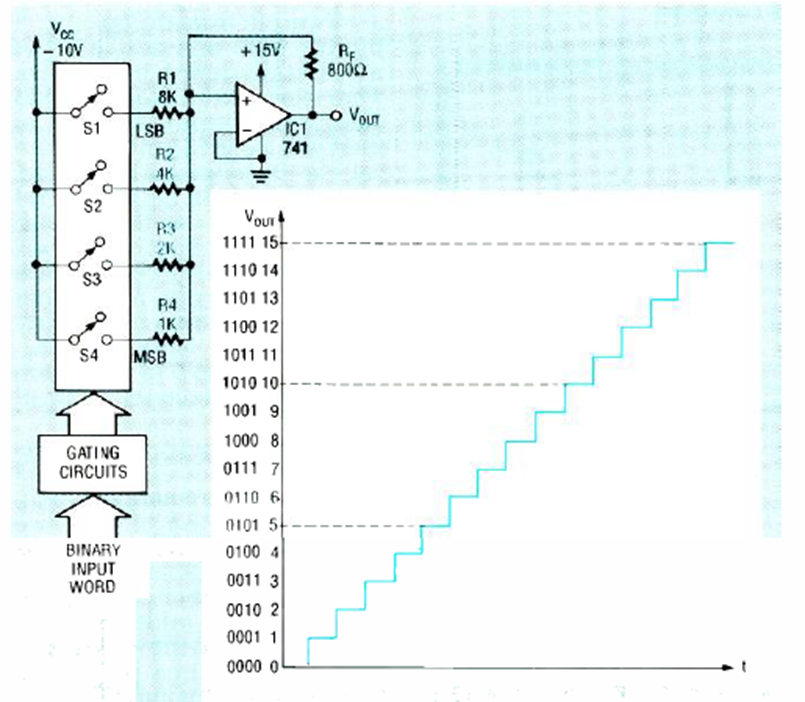

D to A Converter (CB25391E)

This digital to analog converter circuit can use any digital switch IC. The circuit is from a July 1991 Radio Electronics magazine.

| Clique na imagem para ampliar |
