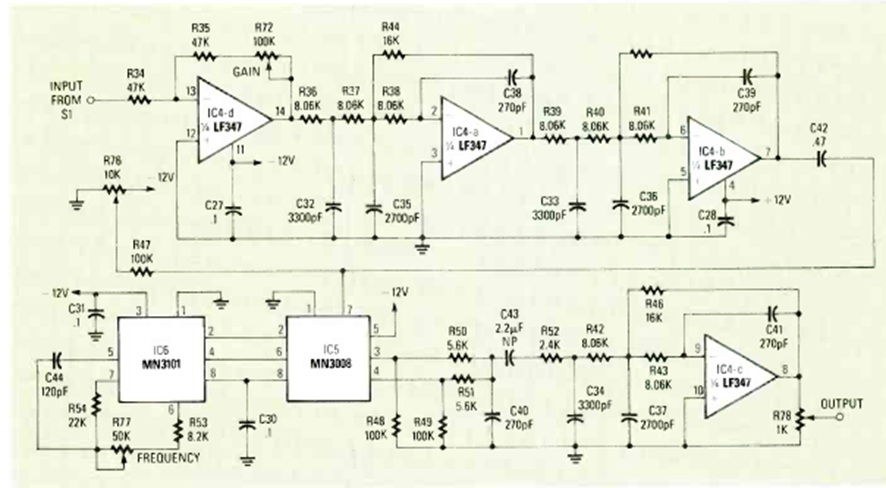

Acoustic Delay Circuit (CIR25263E)

This delay circuit for a sound system was found in the December 1990 Radio Electronics magazine as part of a sound system.

| Clique na imagem para ampliar |
