Digital Moisture Meter (CB25144E)

Details
Written by: Newton C. Braga

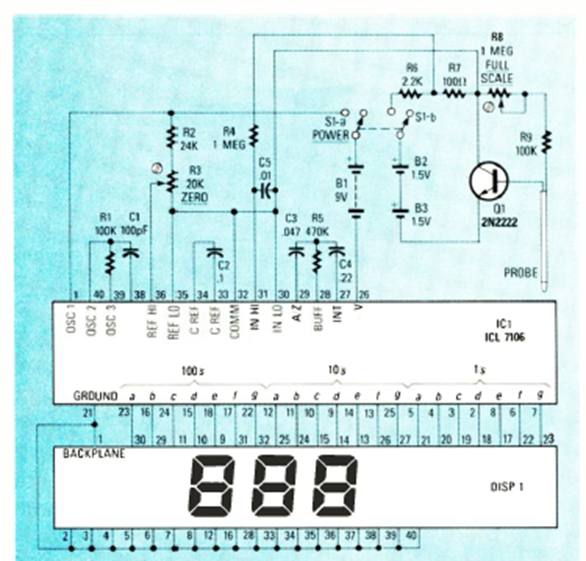

This digital indicator circuit was found in the June 1988 issue of Radio Electronics magazine. The circuit uses a liquid crystal display that was common at the time.
