Voltage Controlled Amplifier (CB25145E)

Details
Written by: Newton C. Braga

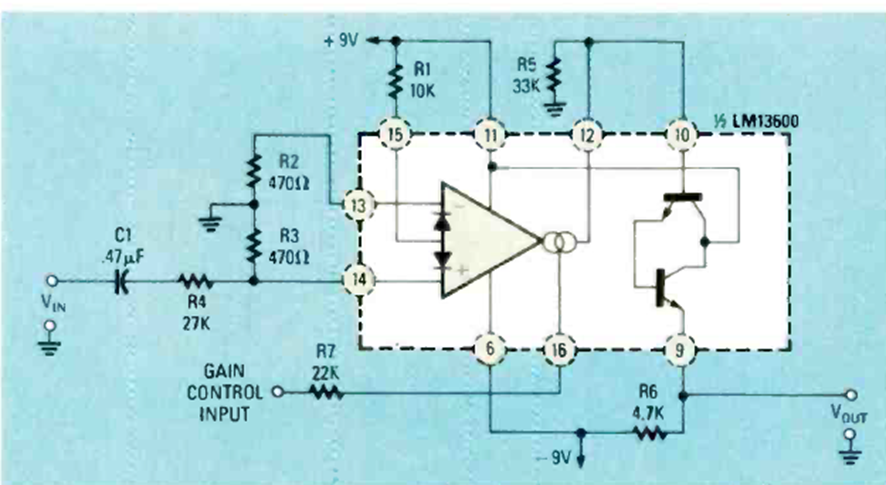

This VCA was found in the July 1988 issue of Radio Electronics magazine. It uses an OTA op amp and has its gain adjusted by the voltage at the gain input.
