Digital potentiometer 4046 (CB25242E)

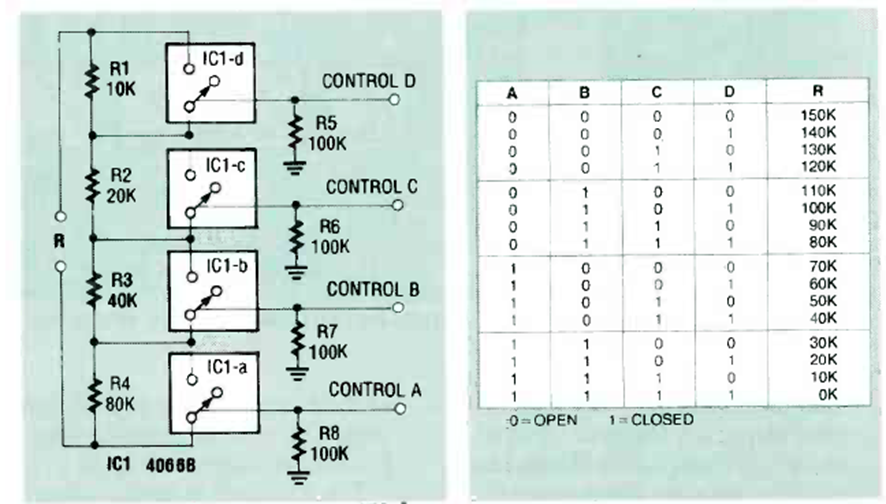

The figure shows how to obtain a digitally programmed resistance using the 4066. The circuit is from a Radio Electronics from November 1989.
