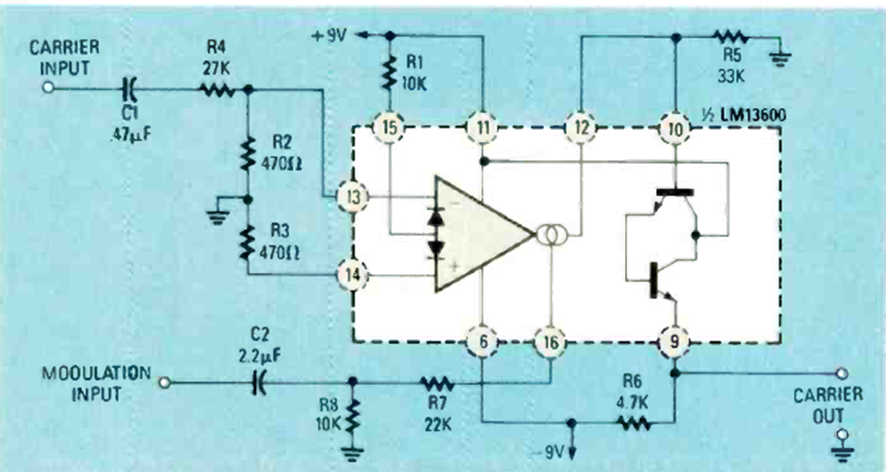

LM3600 Amplitude Modulator (CB25146E)

Details
Written by: Newton C. Braga



This circuit was found in the July 1988 issue of Radio Electronics magazine. It makes use of an operational transconductance amplifier (OTA) still in use today.
