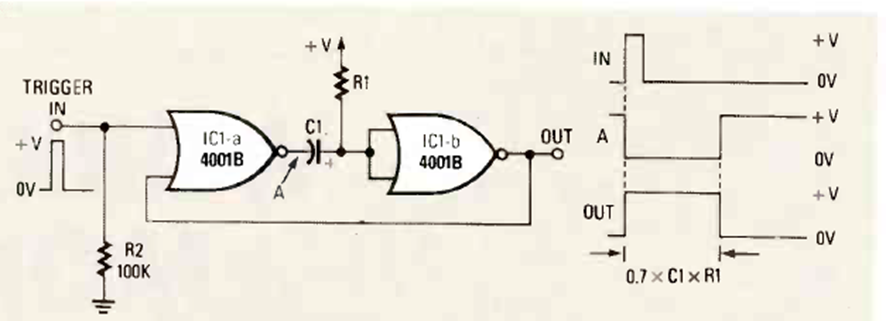

This two-port configuration of the 4001 was found in the April 1988 issue of Radio Electronics magazine. The timings are given by R1 and C1 as a function of the desired behavior of the circuit.
