This circuit is used for educational demonstration of the operation of a bistable or flip-flop. The circuit is from the March 1996 issue of Electronics Now magazine. A relay can be used instead of the LED.
| Clique na imagem para ampliar |

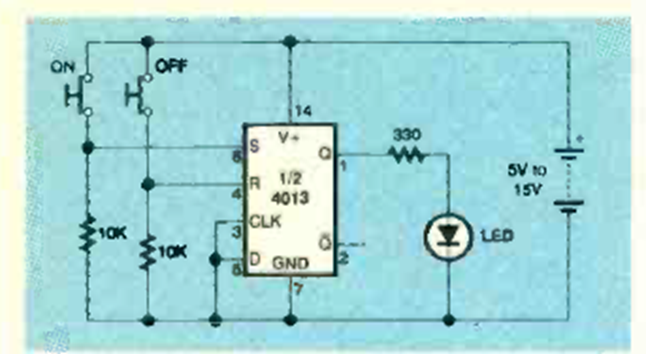

Flip Flop Demonstration Circuit (CB25320E)
- Details
- Written by: Newton C. Braga
