Auto Answer Phone (CB5998E)

Details
Written by: Newton C. Braga

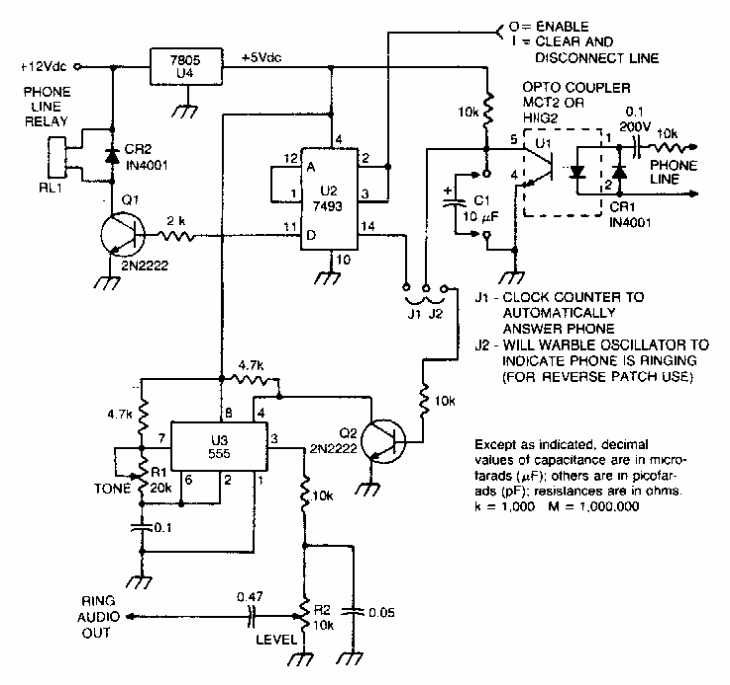

     This circuit is for traditional old-style telephone lines found in an American 1980s documentation. Components are common and the optical coupler can be replaced with an equivalent.




| Clique na imagem para ampliar |
