Phone Status Monitor (CB5977E)

Details
Written by: Newton C. Braga

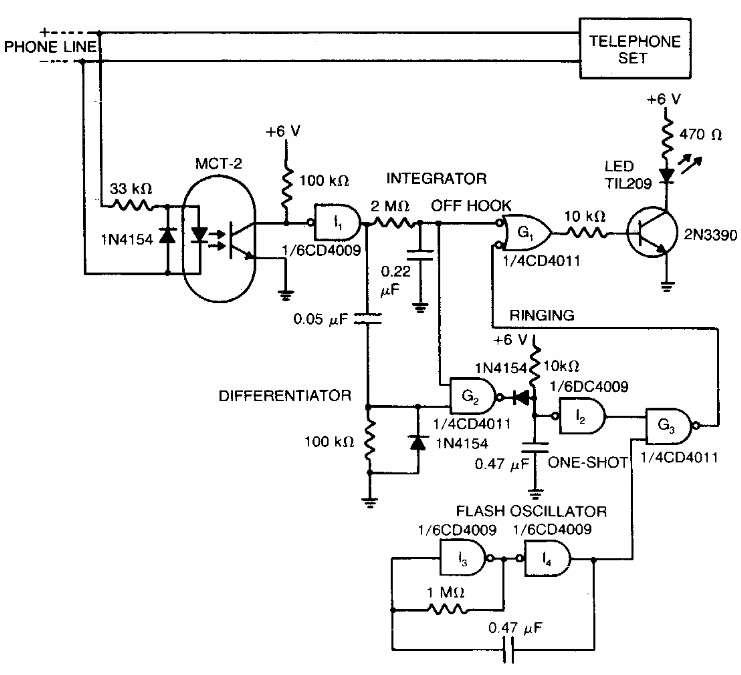

    We found this circuit in an old documentation, but the components used offer no difficulty in obtaining it. The CMOS integrated circuits are powered by a 6V supply.
