Ground Test (CB5946E)

Details
Written by: Newton C. Braga

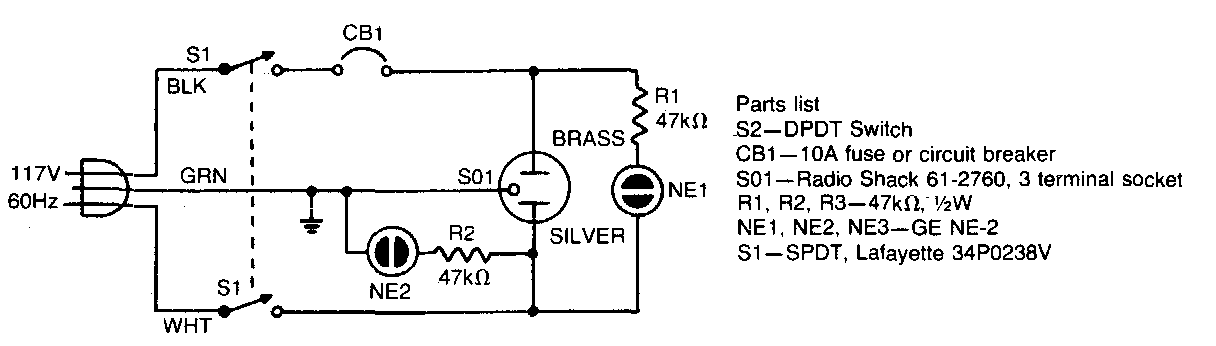

    This grounding test circuit was found in an American 80's documentation. The circuit is for the 110 V power grid but can be changed to the 220 V power grid.
