Burst Generator (CB6072E)

Details
Written by: Newton C. Braga

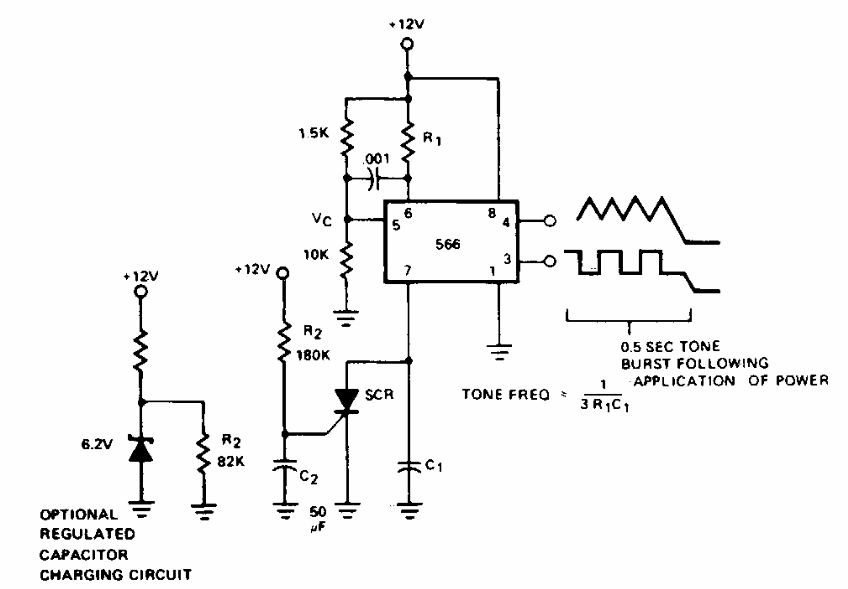

     This circuit was found in a Signetics documentation from the 1980s. The integrated is a PLL and the SCR is a general purpose type The pitch frequency is given by R1 and C1 as formula next to the diagram.
