Damped Oscillator (CB5971E)

Details
Written by: Newton C. Braga

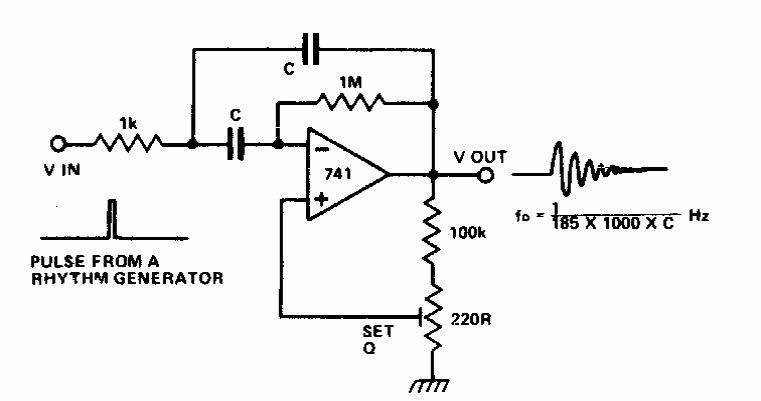

    This circuit can be used to generate percussion sounds such as bell, triangle, etc. The circuit must be powered by symmetrical source and the triggering is by external pulse.
