Ground Fault Switch (CB5947E)

Details
Written by: Newton C. Braga

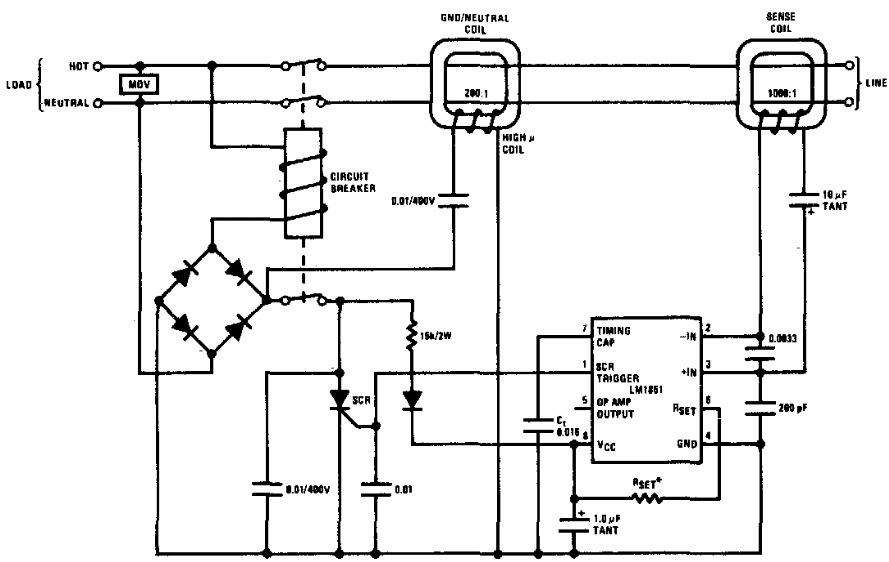

    This circuit interrupts the power supply when grounding is missing. The circuit is from an old documentation (from the 80's) using current transformers and other components of the time.
