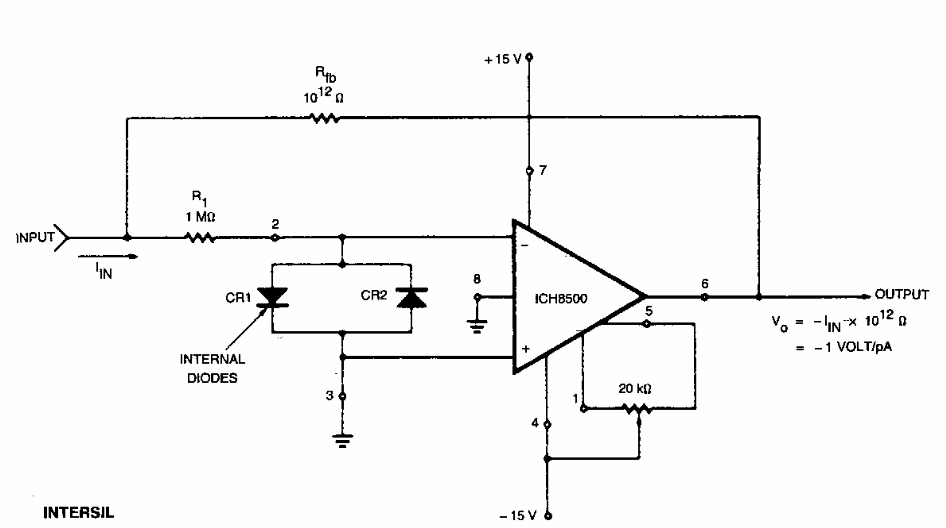

Picoammeter (CB6192E)

Details
Written by: Newton C. Braga



     This circuit was found in a 1980s Intersil documentation. The integrated circuit used is not common today. The power supply must be symmetrical.
