Stereo Preamplifier (CB6035E)

Details
Written by: Newton C. Braga

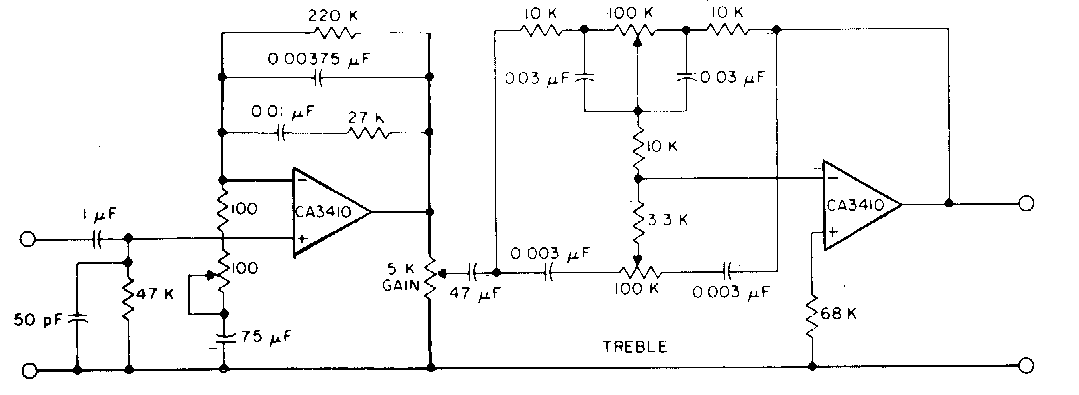

    This circuit with RIAA equalization is from 1985 US documentation. The circuit has a flat response of 150 Hz to 40 kHz. The power supply must be symmetrical.
