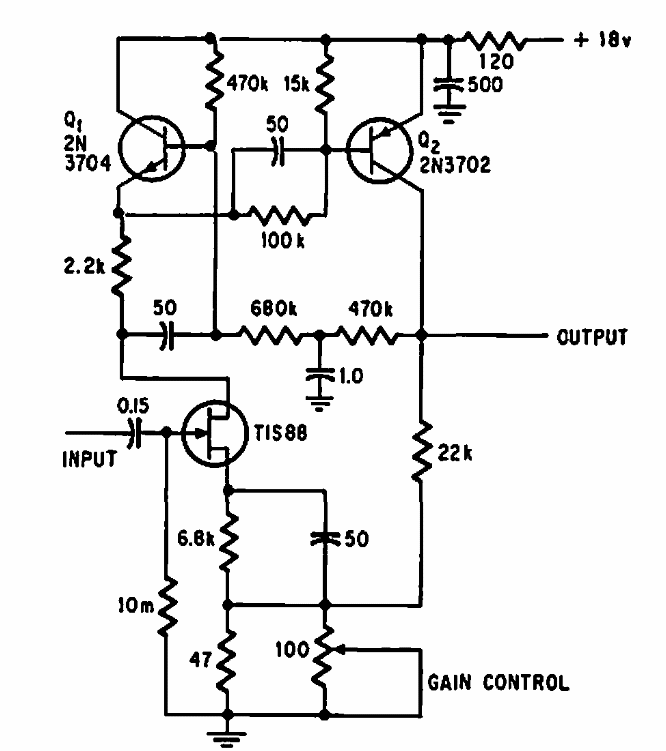

This circuit amplifies signals from 0.5 Hz to 300 kHz. We found it in an old documentation. Equivalent transistors may be used. The gain is 20 dB.
| Clique na imagem para ampliar |
Broadband Amplifier (CB6123E)
- Details
- Written by: Newton C. Braga
This circuit amplifies signals from 0.5 Hz to 300 kHz. We found it in an old documentation. Equivalent transistors may be used. The gain is 20 dB.
