Burst Tone Generator (CB6073E)

Details
Written by: Newton C. Braga

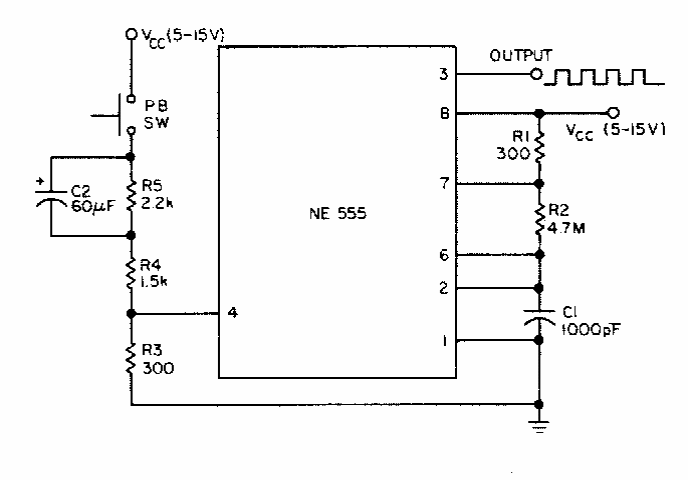

    This circuit uses a 555 (according to the diagram) to generate 50 ms tone bursts at a frequency of 1.5 kHz. The circuit is from an 80's Electronic Design.
