Automotive Temperature Monitor (CB6045E)

Details
Written by: Newton C. Braga

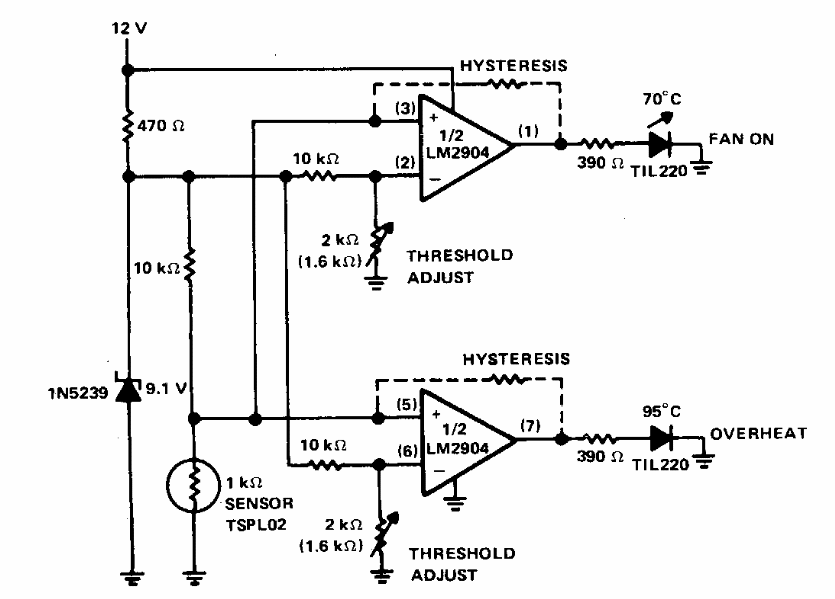

     This circuit was found in a Texas Instruments documentation from the 1980s. The circuit monitors engine temperature by warning of engine warm-up and warning when the fan is on.
