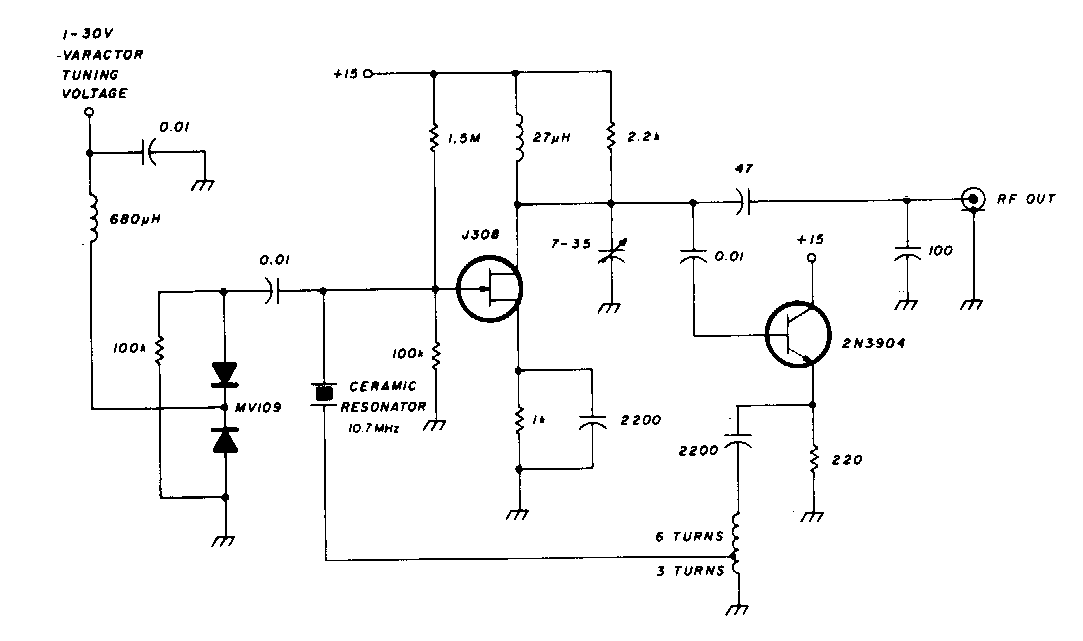

10 MHz Tuned Resonator Oscillator (CB6142E)

Details
Written by: Newton C. Braga



    This circuit was found in a 1980s documentation for amateur radio. The circuit makes use of components of the era, but modern equivalents can be used.
