Symmetrical Regulator LM380 (CB5879E)

Details
Written by: Newton C. Braga

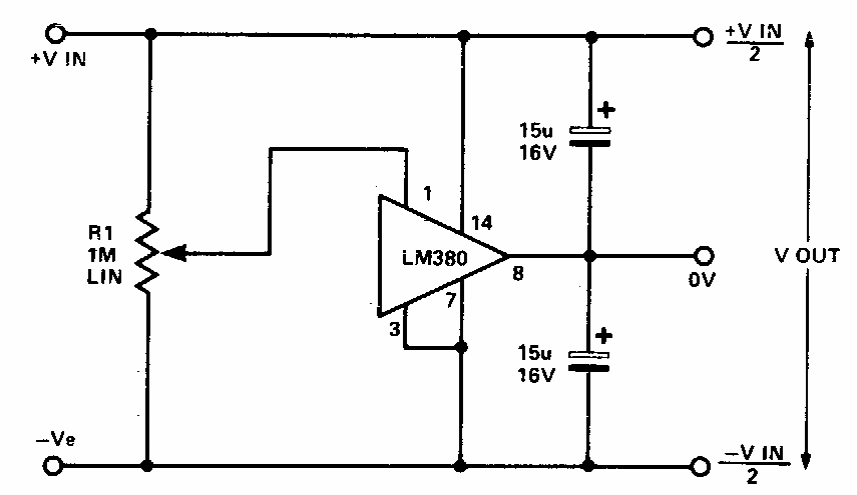

    This 80's circuit uses an audio amplifier to obtain a symmetrical source from a single source. The maximum current is on the order of 1.3 A and the input voltage must not exceed 20 V.
