Frequency Comparator (CB6092E)

Details
Written by: Newton C. Braga

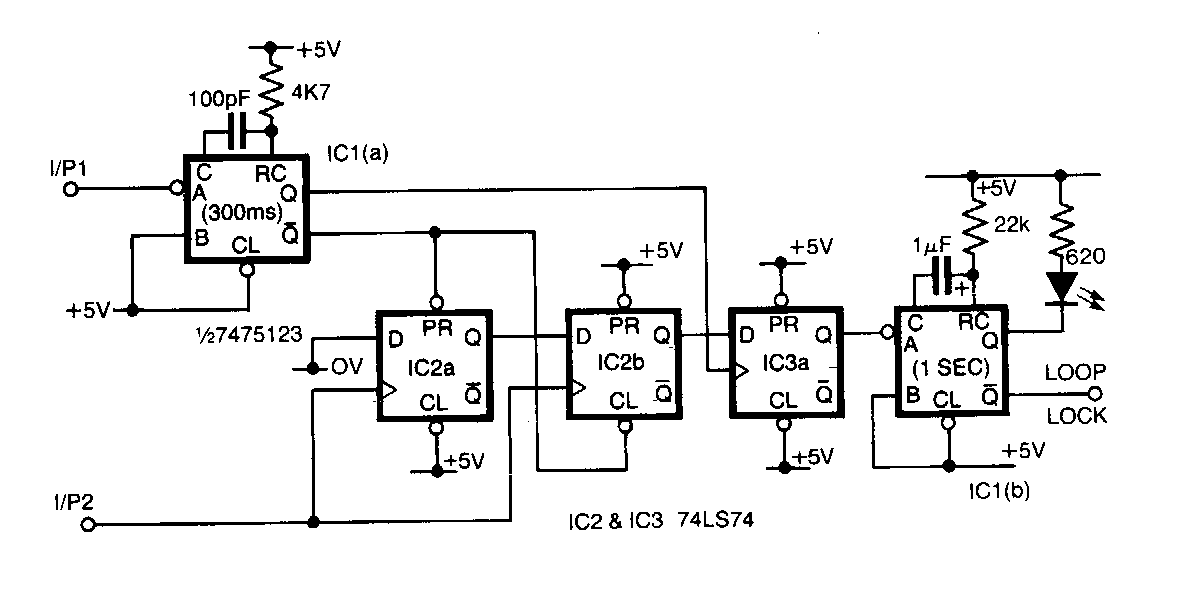

     Found in an American 1980s documentation, this circuit compares signals from two TTL sources, providing an output that depends on the frequency difference. The circuit can be used as a shield.




| Clique na imagem para ampliar |
