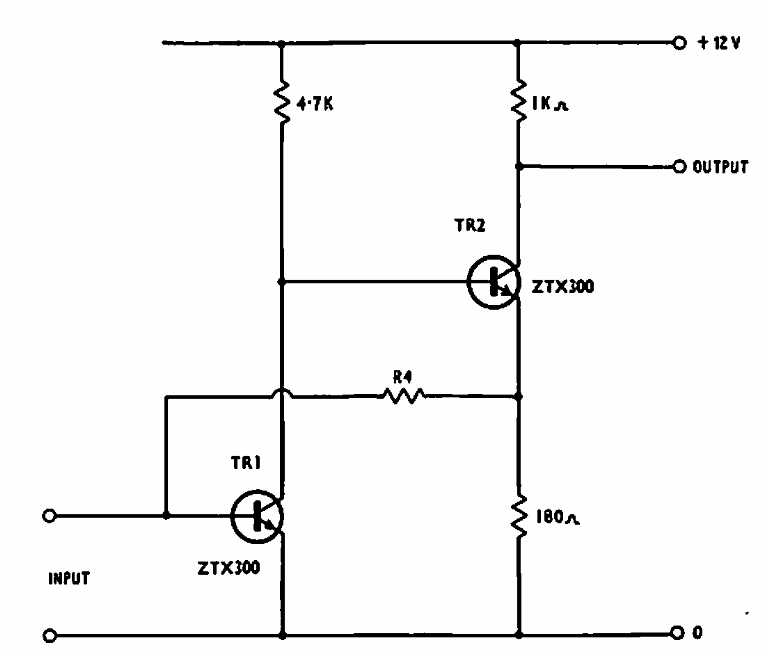

Current Amplifier (CB6136E)

This circuit was found in a British documentation from 1969. It can be implemented with modern transistors. The pass band is 6 MHz.
