FM Demodulator (CB6196E)

Details
Written by: Newton C. Braga

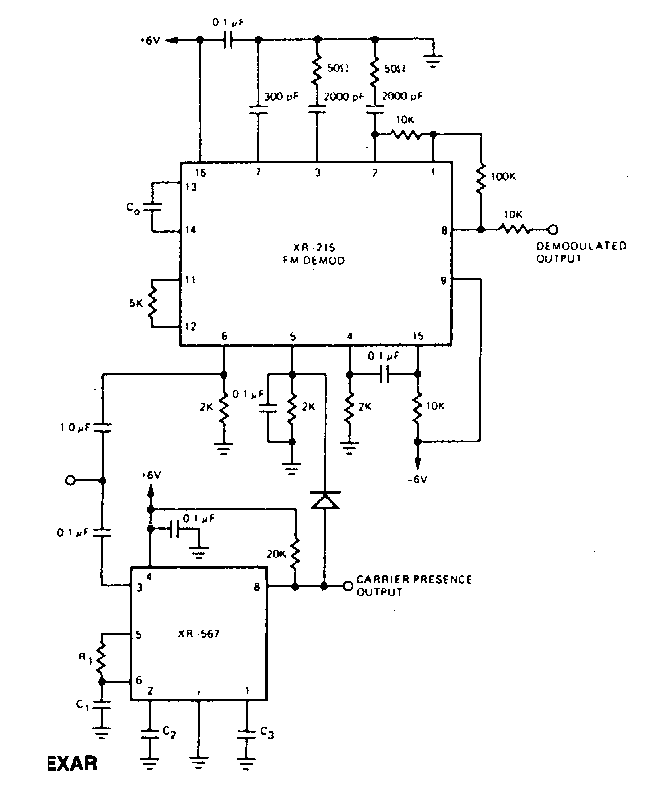

    This 80's Exar circuit has a carrier detector for frequencies up to 500 kHz. The circuit uses a company 567 which is still a common component.
