This circuit is from a 1980s Motorola documentation. The circuit can be made with modern equivalent components. The original circuit is for the 115 Vac (110 V) grid and has two settings.
| Clique na imagem para ampliar |

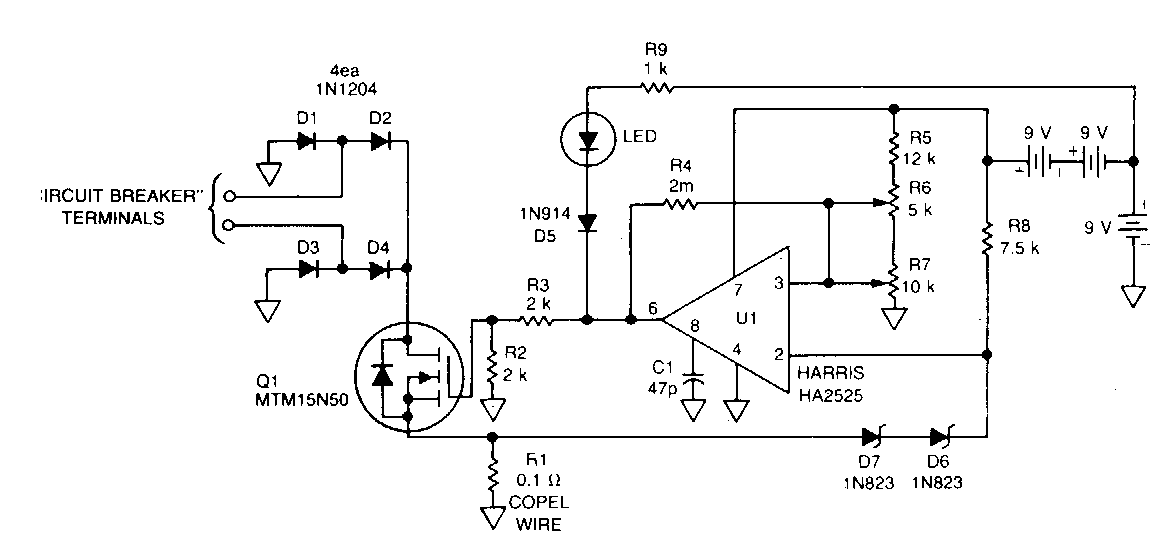

High Speed Circuit Breaker (CB6077E)
- Details
- Written by: Newton C. Braga
