Low Voltage Oscillator (CB6188E)

Details
Written by: Newton C. Braga

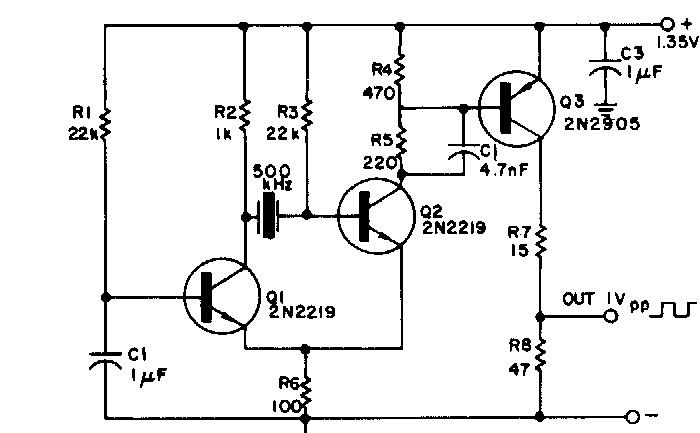

     This circuit operates at a voltage of 1.3 V from a single mercury cell. We found in an old documentation and for the components used the frequency is 500 kHz.
