Simple sound bridge (CB6069E)

Details
Written by: Newton C. Braga

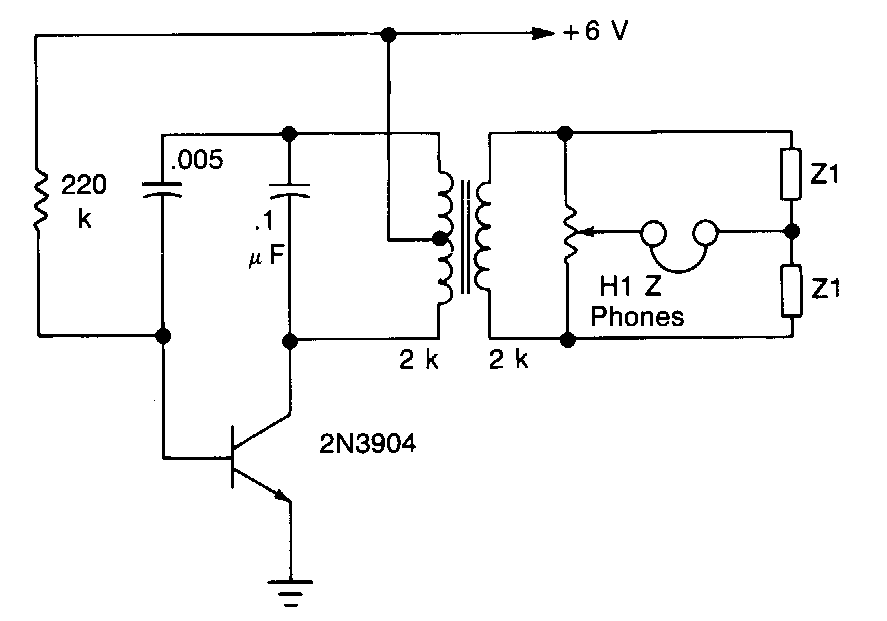

    This simple bridge circuit can be used for impedance or resistance measurement using a high impedance earphone as an indicator. The circuit is from an American 80's documentation.
