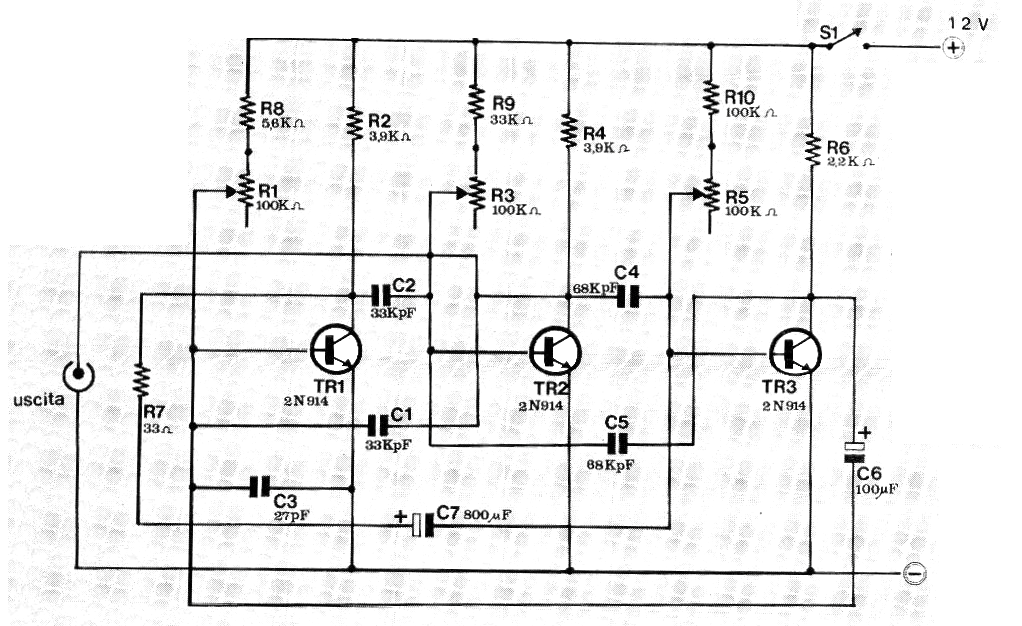

This interesting multivibrator was found in an Italian magazine that no longer exists. This is Radio Elettronica, July 1972 edition. The circuit can be easily assembled as we can use the BC548 transistors instead of the original. The output is a low frequency signal that can be transferred to the input of a common amplifier.
