Additional Pull Pull (CB6119E)

Details
Written by: Newton C. Braga

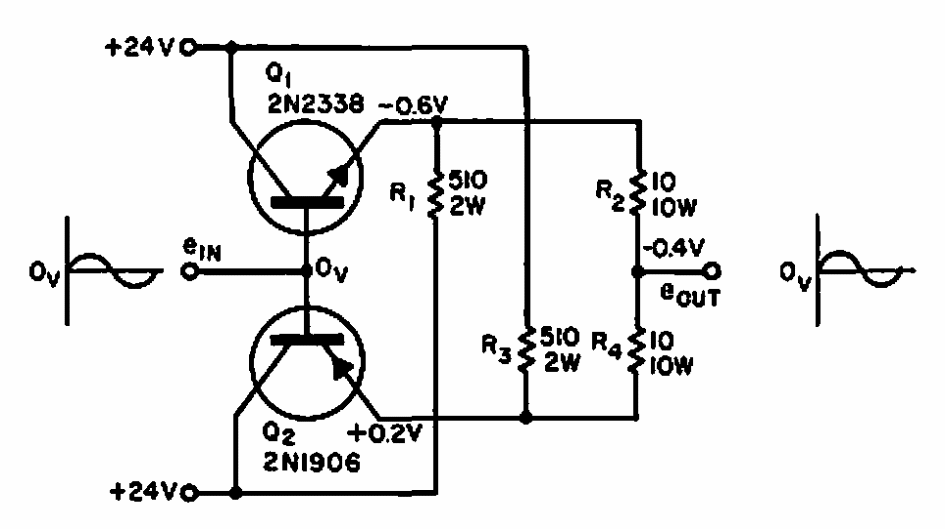

     This stage was found in a 1964 Electronic Design. The transistors are of the time and the shape of the signal obtained is shown in the diagram.




| Clique na imagem para ampliar |
