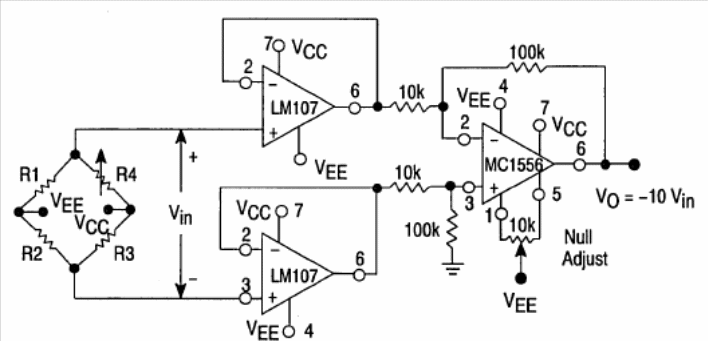

a High Impedance Bridge Amplifier LM1556 (CB4487E)

Details
Written by: Newton C. Braga



    This circuit is from the 1993 Motorola Linear Interface ICs. The circuit must use symmetrical power supply and equivalent operational can be used.
