Tic Tac Toe with LEDs (CB4322E)

Details
Written by: Newton C. Braga

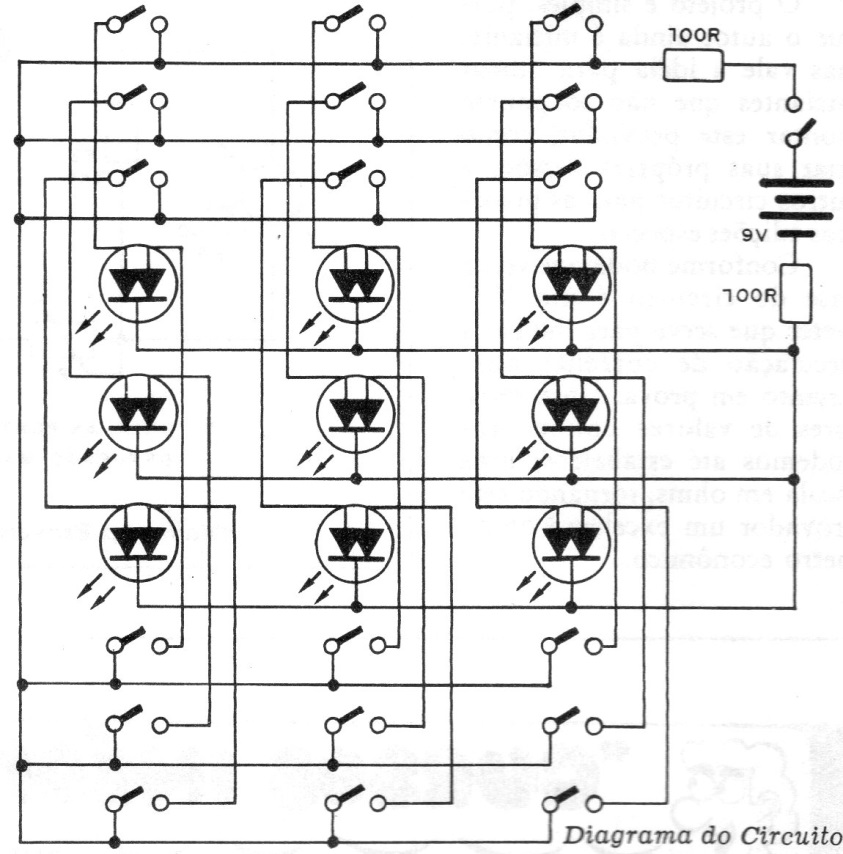

     We found this circuit in a 1986 documentation. It uses only LEDs, batteries, resistors and the power supply which can consist of 4 batteries or a 9V battery. The basic circuit uses two-color LEDs.




| Clique na imagem para ampliar |
