Neon oscillator (CB4239E)

Details
Written by: Newton C. Braga

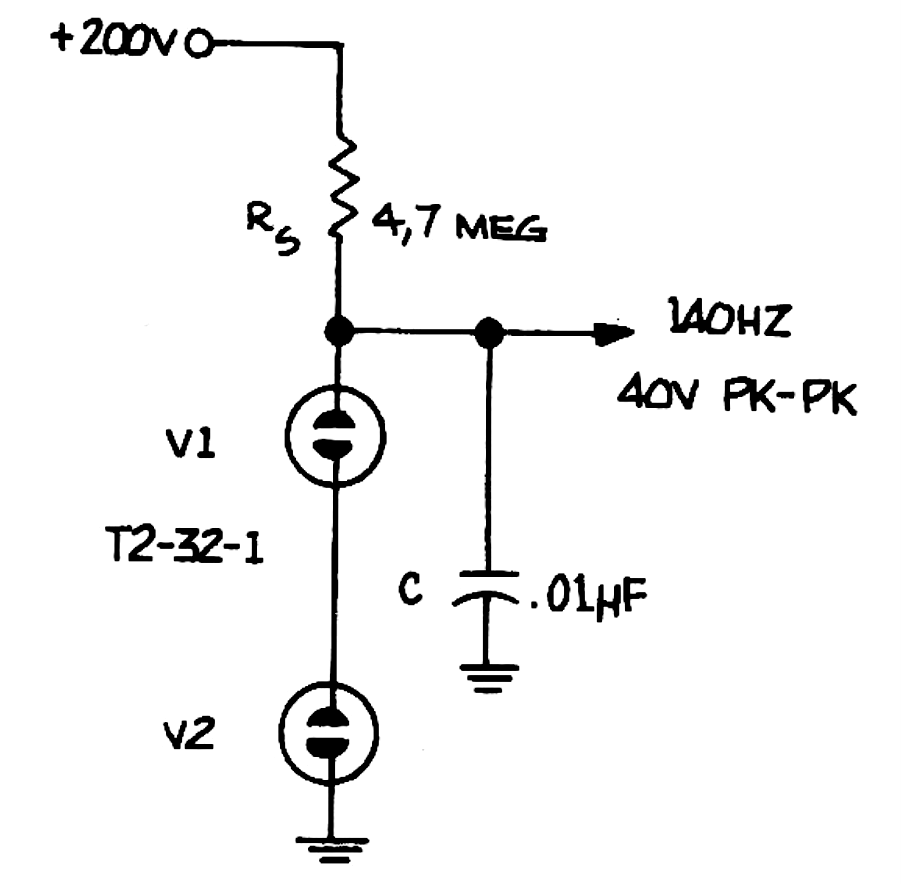

    This simple neon lamp oscillator produces a 140 Hz, 40 V peak-to-peak signal. The frequency is given by the capacitor that can have its value changed. Note the high supply voltage.
