Phase Splitter (CB4239E)

Details
Written by: Newton C. Braga

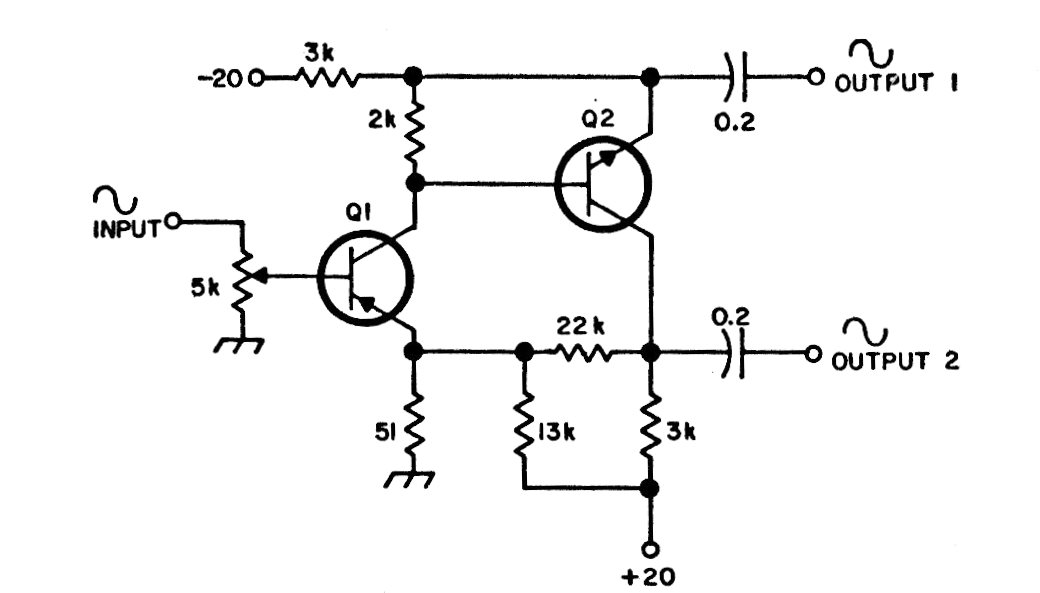

     From an audio signal, this circuit gets two signals of the same amplitude and opposite phases. This setting is widely used in bridge amplifiers (BTL). Transistors may be commonly used as BC series.




| Clique na imagem para ampliar |
