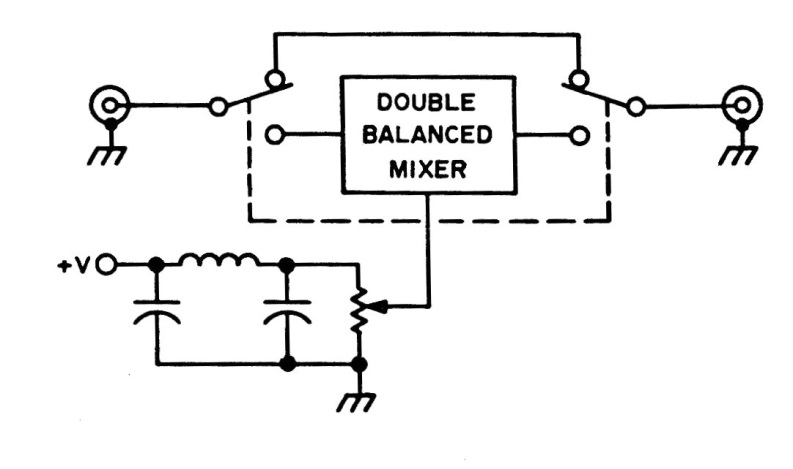

This circuit was obtained from an American 80's documentation. The balanced mixer can be shown in CB4234. The circuit is for controlling RF signals in a modulation system.
| Clique na imagem para ampliar |
Variable Voltage Controlled Attenuator (CB4236E)
- Details
- Written by: Newton C. Braga
