Balanced Dual Modulator (CB4234E)

Details
Written by: Newton C. Braga

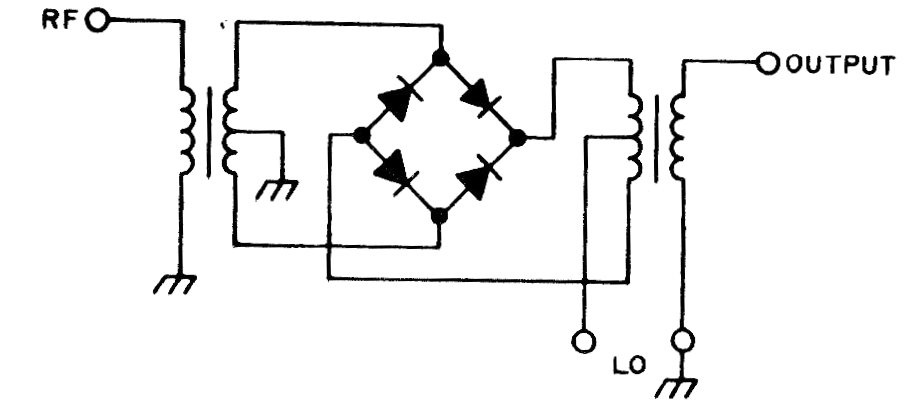

    This dual balanced modulator configuration was obtained in a 1980s telecommunications documentation. The circuit makes use of transformers and the diodes are commonly used.




| Clique na imagem para ampliar |
