455 kHz Amplifier (CB4219E)

Details
Written by: Newton C. Braga

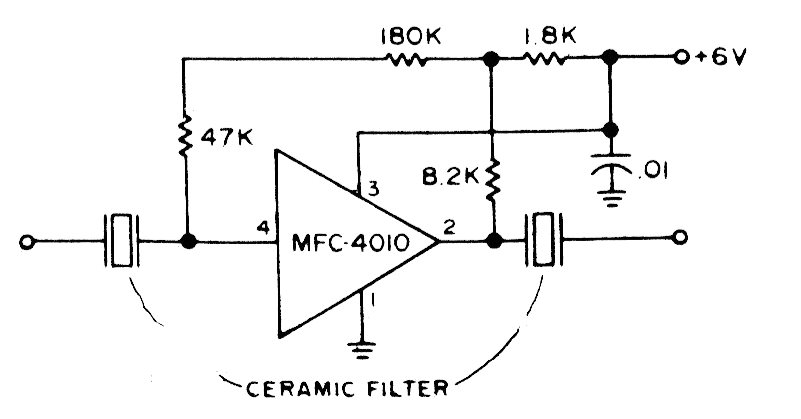

    Found in a 1980s documentation, this amplifier uses an integrated circuit that is not easy to obtain now as it is of the era. The circuit is intended for FI ceramic filter circuits.
