FSK Demodulator (CB4180E)

Details
Written by: Newton C. Braga

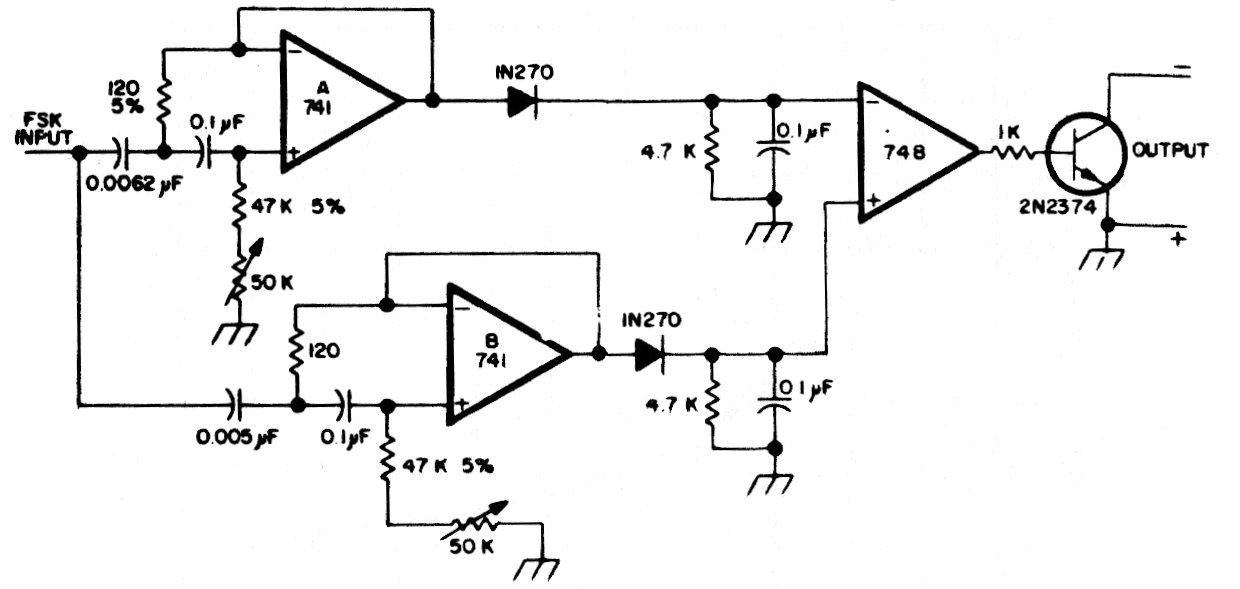

    This space mark demodulator for FSK signals was found in an American telecommunication documentation from the 1980s. The circuit operates with 2025 Hz and 225 Hz mark space signals.
