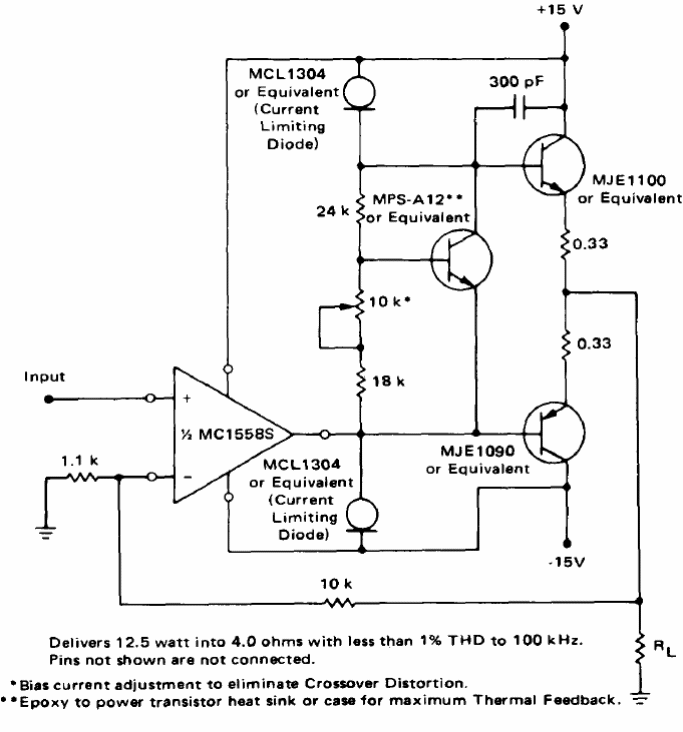

This circuit was found in the 1990 Motorola Dataar Linear. We can mount it with more modern equivalent transistors. Output transistors shall be provided with heat radiators.
| Clique na imagem para ampliar |
12.5 W Amplifier (CB4020E)
- Details
- Written by: Newton C. Braga
