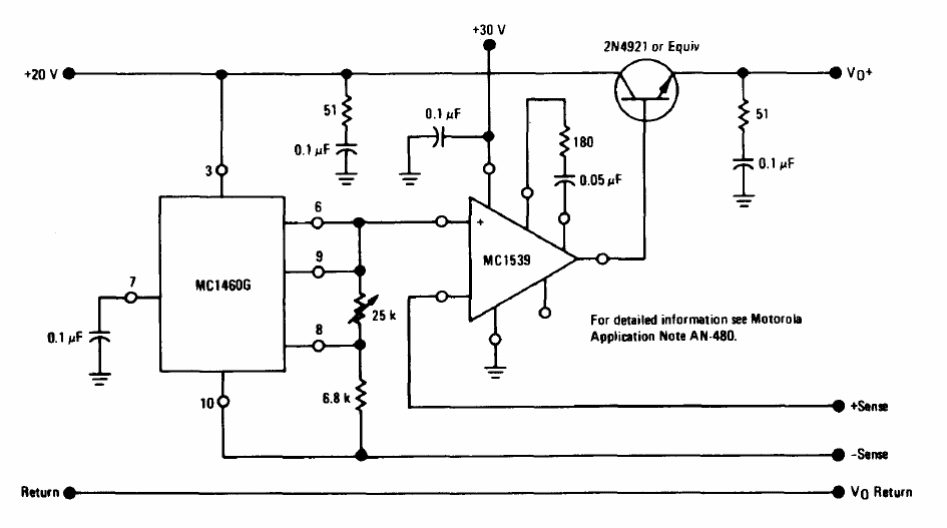

15 V Regulator MA1539 (CB4017E)

Details
Written by: Newton C. Braga



    This circuit is from a documentation on the MC1539 from Motorola and may, however, be implemented with equivalent operations. The transistor also supports equivalent.




| Clique na imagem para ampliar |
