High Impedance Bridge Amplifier (CB4013E)

Details
Written by: Newton C. Braga

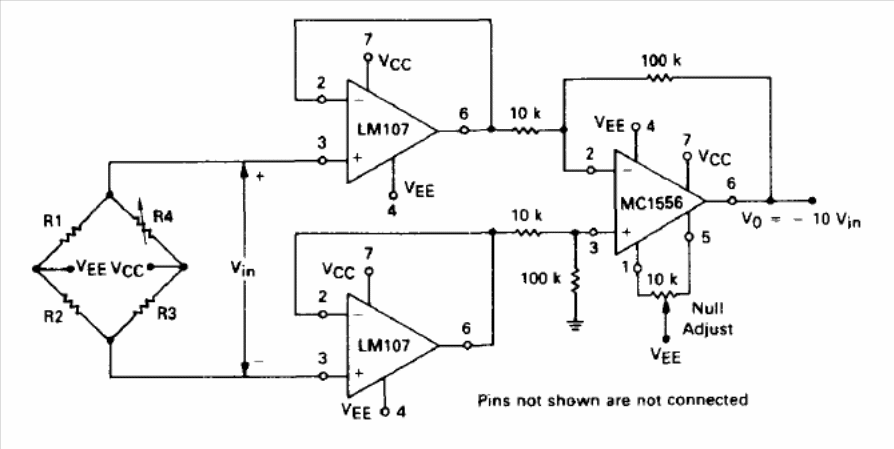

   This circuit is from Motorola's 1990 Linear Databook. We can implement it with other operational amplifier. The power supply must be symmetrical.




| Clique na imagem para ampliar |
