Beta Meter (CB3804E)

Details
Written by: Newton C. Braga

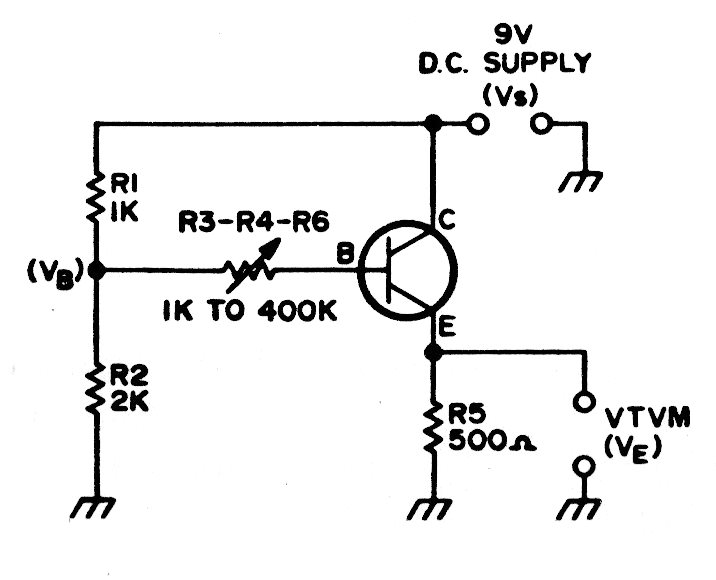

    This circuit uses a common multimeter on the voltage scale. The calibration of the scale should be done based on transistors with known gains.




| Clique na imagem para ampliar |
