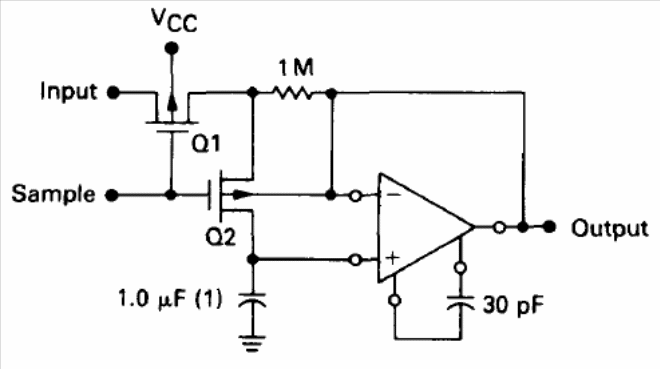

Sample and Hold with the (CB3998E)

Details: Written by: INCB

This circuit is from the 1990 Motorola Linear Databook, which can be developed with more modern equivalent operating systems. The 1 uF capacitor should be of good quality polyester with small leaks
